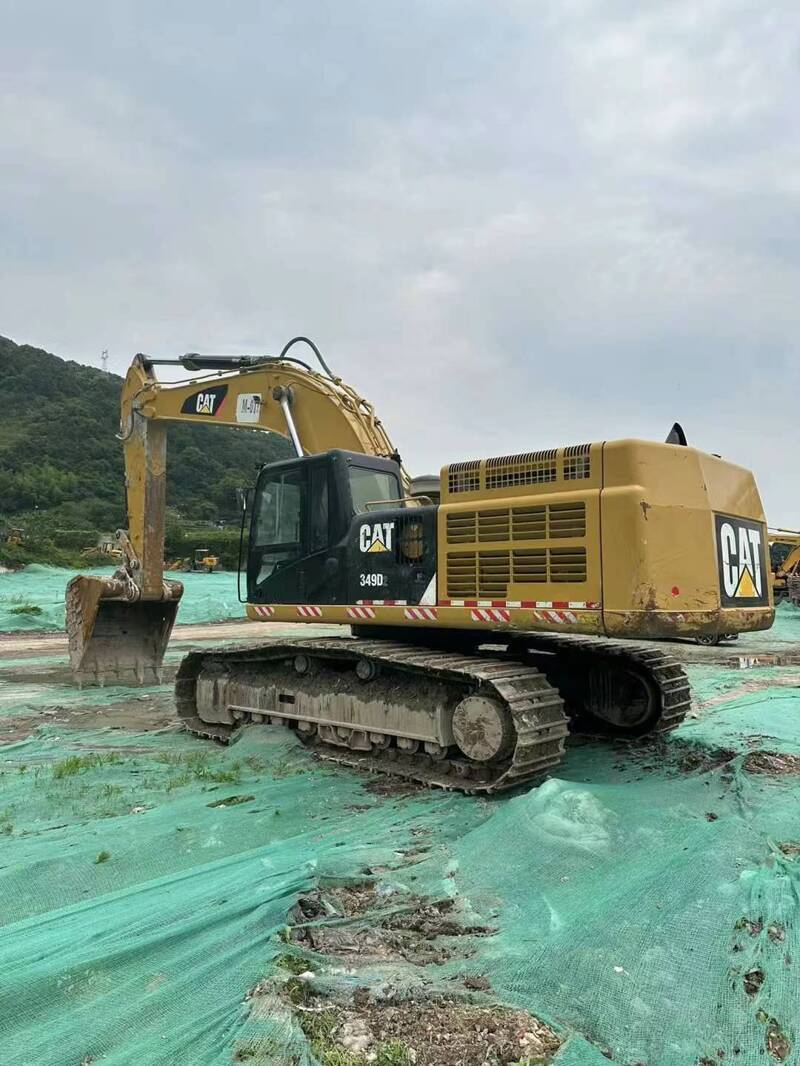

Used CAT 349 excavator
The Caterpillar 349 excavator (Next Generation) is a heavy‑duty large hydraulic excavator designed for demanding earthmoving, digging, loading, and construction applications. It features a Cat® C13 engine, advanced electrohydraulic controls, and enhanced efficiency and operator assistance systems to improve productivity and reduce fuel and maintenance costs.
| Operating Weight | ~47,700 kg (105,300 lb) |
| Engine Model | Cat® C13 |
| Net Power (ISO 9249) | ~316 kW (424 hp) |
| Gross Power (ISO 14396) | ~317 kW (425 hp) |
| Displacement | ~12.5 L |
| Bucket Capacity (Typical) | ~1.9 m³ (2.5 yd³) |
| Max Digging Depth | ~8,210 mm (26.9 ft) |
| Max Reach at Ground Level | ~12,150 mm (39.9 ft) |
| Max Loading Height | ~7,420 mm (24.4 ft) |
| Fuel Tank Capacity | ~705 L (~186 gal US) |
| Hydraulic System Capacity | ~570 L (~151 gal US) |
| Travel Speed | ~4.8 – 5.0 km/h (varies by configuration) |
