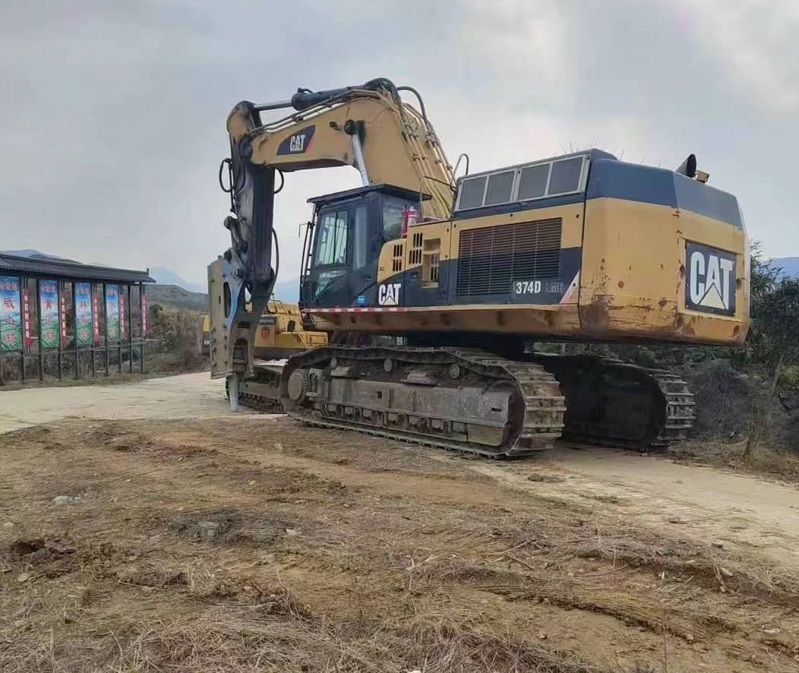

Used CAT 374 excavator
The Caterpillar 374 excavator is a heavy‑duty large hydraulic excavator designed for tough earthmoving, quarry, and heavy construction tasks. It features a powerful Cat® C15 engine, advanced hydrostatic swing circuit, and smart operating modes (Power, Smart, Eco) to balance fuel efficiency with performance on demanding jobsites.
| Operating Weight | ~73,890 kg (162,900 lb) |
| Engine Model | Cat® C15 |
| Net Power (ISO 9249) | ~361 kW (484 hp) |
| Gross Power (ISO 14396) | ~362 kW (485 hp) |
| Bucket Capacity (Typical) | ~3.3 m³ (4.32 yd³) |
| Max Digging Depth | ~8,570 mm (28.1 ft) |
| Max Reach at Ground Level | ~13,160 mm (43.2 ft) |
| Max Cutting Height | ~12,550 mm (41.2 ft) |
| Max Loading Height | ~8,430 mm (27.7 ft) |
| Bucket Digging Force (ISO) | ~358 kN (80,550 lbf·ft) |
| Stick Digging Force (ISO) | ~295 kN (66,390 lbf·ft) |
| Fuel Tank Capacity | ~920 L (243 gal US) |
| Hydraulic System Capacity (Including Tank) | ~620 L (164 gal US) |
| DEF Tank (AdBlue) | ~80 L (21 gal US) |
| Travel Speed | ~4.7–5.0 km/h (varies by configuration) |
